Each zip file includes the appropriate 3-D files of ENVIRO-TEC Products in various formats of Revit or Autocad. All revit "*.RFA" files were created in Revit MEP 2009 for use with Revit 2009 or newer versions.
|
|
|
Single Duct
|
|
SDR, SDL WC
SDR terminals are available in cooling only, cooling with hot water or electric reheat offerings. SDR Single Duct VAV Terminals are available in ten unit sizes providing airflow capacities between 30 to 8,000 CFM's. SDL Single Duct Low-Height VAV units are only 10" in height, providing a compact cabinet design and quiet operation to aid the designer and owner with additional VAV applications flexibilities. SDL's are available in four unit sizes (10, 12, 14 and 16) to handle capacities up to 4100 CFM's.
|
| |
|
SDR, SDL EH
SDR terminals are available in cooling only, cooling with hot water or electric reheat offerings. SDR Single Duct VAV Terminals are available in ten unit sizes providing airflow capacities between 30 to 8,000 CFM's. SDL Single Duct Low-Height VAV units are only 10" in height, providing a compact cabinet design and quiet operation to aid the designer and owner with additional VAV applications flexibilities. SDL's are available in four unit sizes (10, 12, 14 and 16) to handle capacities up to 4100 CFM's.
|
|
Series Fan Powered
|
|
CFR, CFL WC
CFR Series Flow Fan Powered VAV Terminals are available to provide airflow capacities between 30 and 4600 CFM's. Model CFR-EH offers electric reheat and model CFR-WC offers hot-water reheat. CFR and CFL's are available with Electronically Commutated Motors (ECM), or standard Permanent Split Capacitor Motors (PSC). CFL Low-Height Series Flow Fan Powered VAV Terminals compliment the standard VFR product family and are specifically designed for quiet operation in shallow or congested ceiling spaces. CFL's are available to provide airflow capacities between 30 and 1900 CFM's.
Download Revit Zip File
|
| |
|
CFR, CFL EH

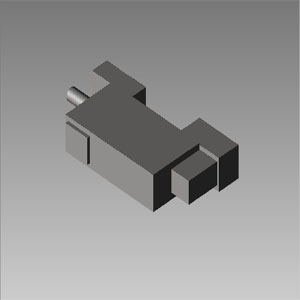

CFR Series Flow Fan Powered VAV Terminals are available to provide airflow capacities between 30 and 4600 CFM's. Model CFR-EH offers electric reheat and model CFR-WC offers hot-water reheat. CFR and CFL's are available with Electronically Commutated Motors (ECM), or standard Permanent Split Capacitor Motors (PSC). CFL Low-Height Series Flow Fan Powered VAV Terminals compliment the standard VFR product family and are specifically designed for quiet operation in shallow or congested ceiling spaces. CFL's are available to provide airflow capacities between 30 and 1900 CFM's.
Download Revit Zip File
|
|
Series Fan Powered, Extra Quiet
|
|

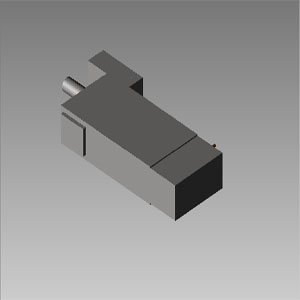

CFRQ Quiet Series Flow Fan Powered VAV Terminals are specifically designed for extra quiet operation. Model CFRQ terminals are available in six fan sizes to handle airflow capacities between 75 and 4100 CFM's. Model CFRQ-EH offers electric reheat and model CFRQ-WC offers hot-water reheat.
|
| |
|
CFRQ Quiet Series Flow Fan Powered VAV Terminals are specifically designed for extra quiet operation. Model CFRQ terminals are available in six fan sizes to handle airflow capacities between 75 and 4100 CFM's. Model CFRQ-EH offers electric reheat and model CFRQ-WC offers hot-water reheat.
|
|
Parallel Fan Powered
|
|
VFR, VFL WC

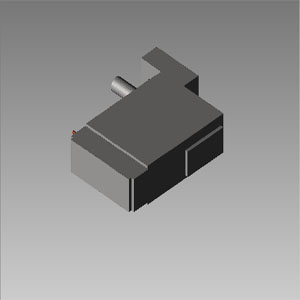

VFR Parallel Flow Fan Powered VAV Terminals are available to provide airflow capacities between 30 and 4100 CFM's. VFR and VFL's are available with Electronically Commutated Motors (ECM), or standard Permanent Split Capacitor Motors (PSC). VFL Low-Height Parallel Flow Fan Powered VAV Terminals are available to provide airflow capacities between 30 and 3000 CFM's.
|
| |
|
VFR, VFL EH
VFR Parallel Flow Fan Powered VAV Terminals are available to provide airflow capacities between 30 and 4100 CFM's. VFR and VFL's are available with Electronically Commutated Motors (ECM), or standard Permanent Split Capacitor Motors (PSC). VFL Low-Height Parallel Flow Fan Powered VAV Terminals are available to provide airflow capacities between 30 and 3000 CFM's.
|
|
Dual Duct
|
|

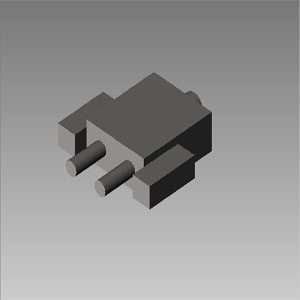

DDR Dual Duct VAV Terminals are available to provide airflow capacities between 40 and 4100 CFM's.
|
|
|
|
HL Horizontal Low Profile
|
|

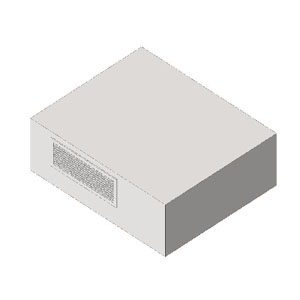

Horizontal low-profile exposed cabinet fan coil unit. Model includes 2-Pipe, 4-Pipe and EH configurations. Nominal 250-1200 CFM
|
| |
|
Horizontal low-profile free-return fan coil unit. Model includes 2-Pipe, 4-Pipe and EH configurations. Nominal 250-1200 CFM
|
| |
|

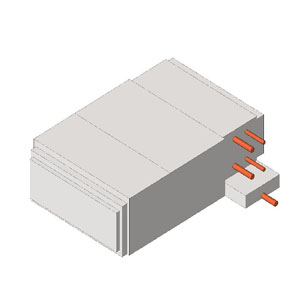

Horizontal low-profile plenum-return fan coil unit. Model includes 2-Pipe, 4-Pipe and EH configurations. Nominal 250-1200 CFM
|
|
HP Horizontal High Performance
|
|

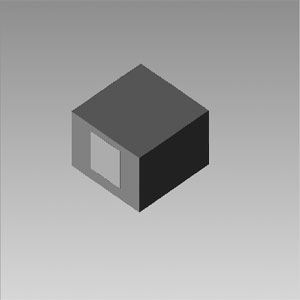

Horizontal High-Performance Exposed Cabinet. Model includes 2-Pipe, 4-Pipe, and EH configurations. Nominal 600-2000 CFM.
|
| |
|
Horizontal High-Performance Free Return. Model includes 2-Pipe, 4-Pipe, and EH configurations. Nominal 600-2000 CFM.
|
| |
|

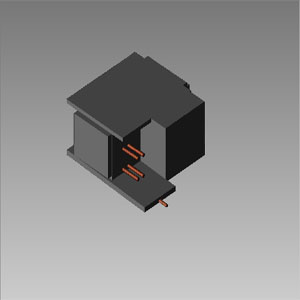

Horizontal High-Performance Plenum Return. Model includes 2-Pipe, 4-Pipe, and EH configurations. Nominal 600-2000 CFM.
|
| |
|

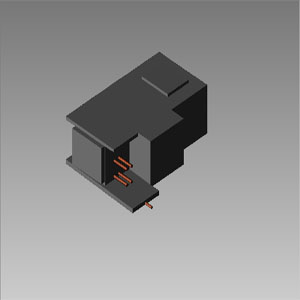

Horizontal High-Performance Plenum Return with Mixing Box. Model includes 2-Pipe, 4-Pipe, and EH configurations. Nominal 600-2000 CFM.
|
|
VF Vertical Floor, Series C
|
|

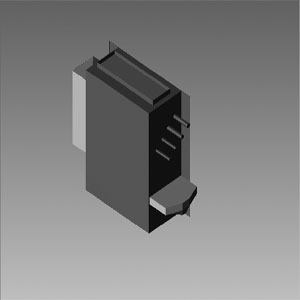

Vertical floor mount concealed. Model includes 2-pipe, 4-pipe and EH configurations. Nominal 250-1200 CFM
|
| |
|

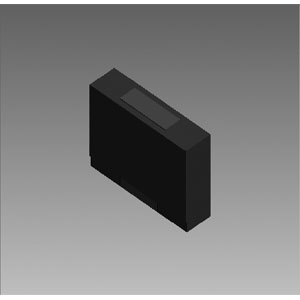

Vertical floor mount exposed cabinet. Model includes 2-pipe, 4-pipe and EH configurations. Nominal 250-1200 CFM
|
| |
|

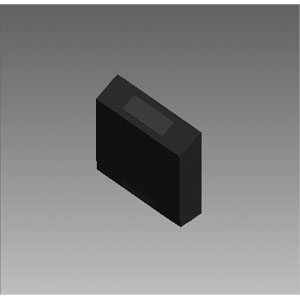

Vertical floor mount sloped top cabinet. Model includes 2-pipe, 4-pipe and EH configurations. Nominal 250-1200 CFM
|
|
VH Vertical Hi-Rise
|
|

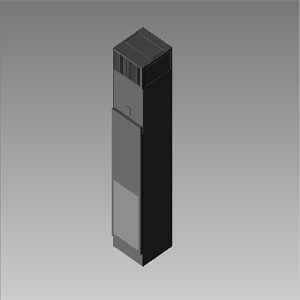

Vertical hi-rise concealed unit, 2-Pipe, 4-pipe, and EH configurations. Nominal 350-1200 CFM.
|
| |
|
|

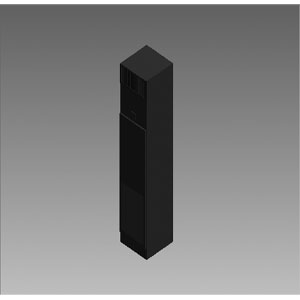

Vertical hi-rise exposed unit, 2-Pipe, 4-pipe, and EH configurations. Nominal 350-1200 CFM.
|
| |
|
|
|
H & V Belt Drive Blower Coils
|
|

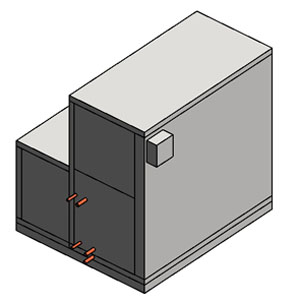

Horizontal and vertical belt driven blower coils units. Nominal 800-4000 CFM.
|
VB / VR Belt Drive Blower Coils |
|

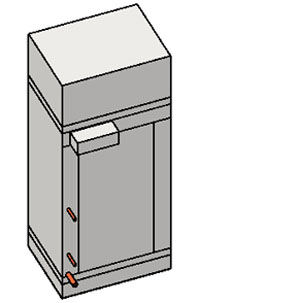

Vertical reduced-footprint belt drive blower coil units. Nominal 800-3000 CFM.
|
INDOOR PACKAGED EQUIPMENT |
|
Vertical Stacked Water-Sourced Heat Pumps
|
|
|
Vertical stacked water source heat pump, 3/4 to 3 tons. Nominal 340-1220 CFM.
|
